Description
Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L380 * W230 * H350 MM
- Weight: 10 KG
- Power Consumption: 50W
- Air Pressure: 4-6 kg/cm²
Product Description:
- Efficient and Easy to Use:Compared to the traditional method of holding the screw with the left hand and the screwdriver with the right, this system frees up the operator’s left hand. The right hand only needs to pick up the screwdriver and align it with the corresponding screw hole for fastening. This completely eliminates the time spent picking up screws, and with the assistance of the left hand, the work is completed quickly and easily.

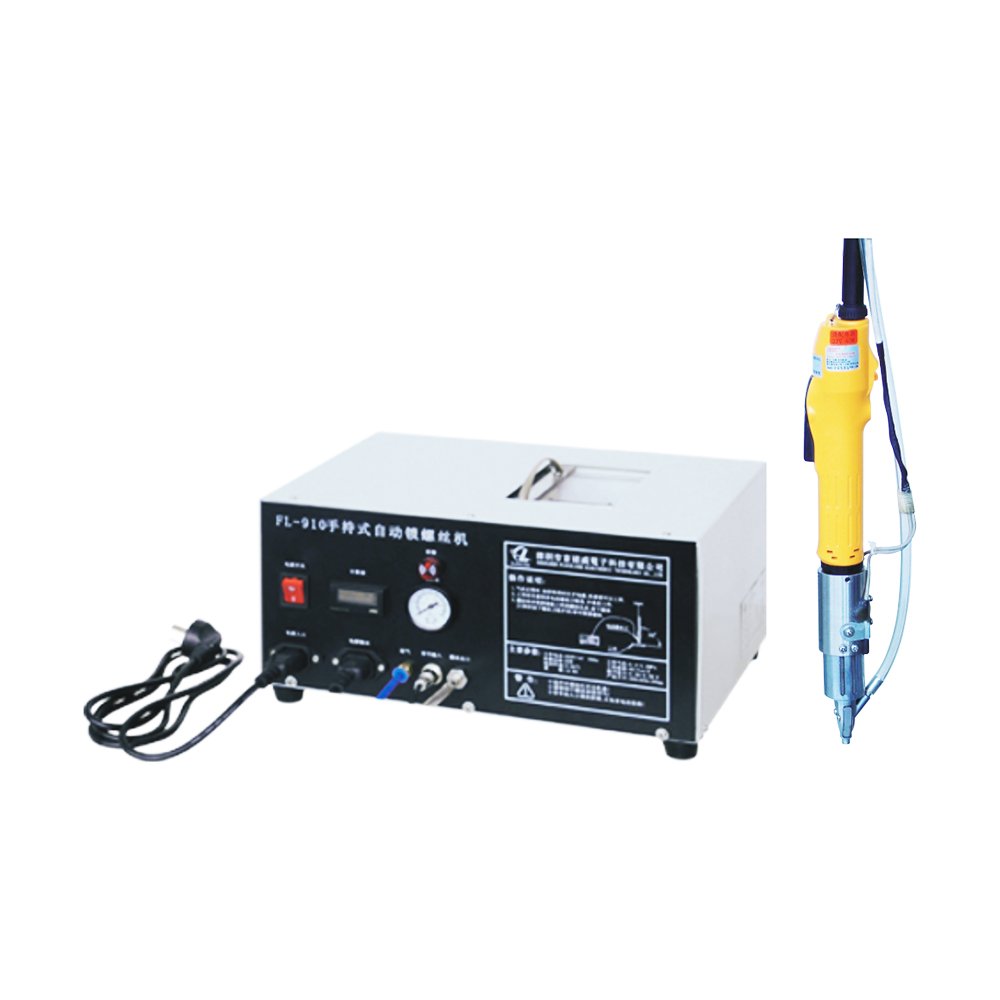

- Stable Performance:All electrical components in the control section of the FL-910 are imported, with key components such as the PLC and cylinders sourced from top brands like Mitsubishi and SMC. This significantly reduces the likelihood of malfunctions.
- Innovative Feeding Mechanism:The screw feeding mechanism replaces traditional vibratory bowls and push feeders with an impeller supply system. This reduces vibration noise and prevents damage to the appearance of screws caused by prolonged exposure to the vibratory bowl.
Applicable Range:
- Screw Head Types: Slotted, Phillips, Pozidriv, Triangle, Internal Hexagon, and others.
- Applicable Products: Home appliances, digital electronics, communication devices, remote controls, toys, plastics, hardware, and other similar applications.
- This equipment is customized based on screw size and screw hole positioning. When ordering, please provide the necessary parameters and samples.
- Thread Length: The total thread length should be greater than the screw head diameter (D) + 2mm (as shown in the diagram).
