Product Parameters:
- Power: 110V/220V AC, 60Hz/50Hz
- Dimensions: L4530 × W2840 × H1690 mm
- Speed: Approximately 300-500 pcs/hour (depending on actual process conditions)
- Weight: Approximately 1600 kg
- Air Pressure: 4–6 kg/cm²
Product Description:

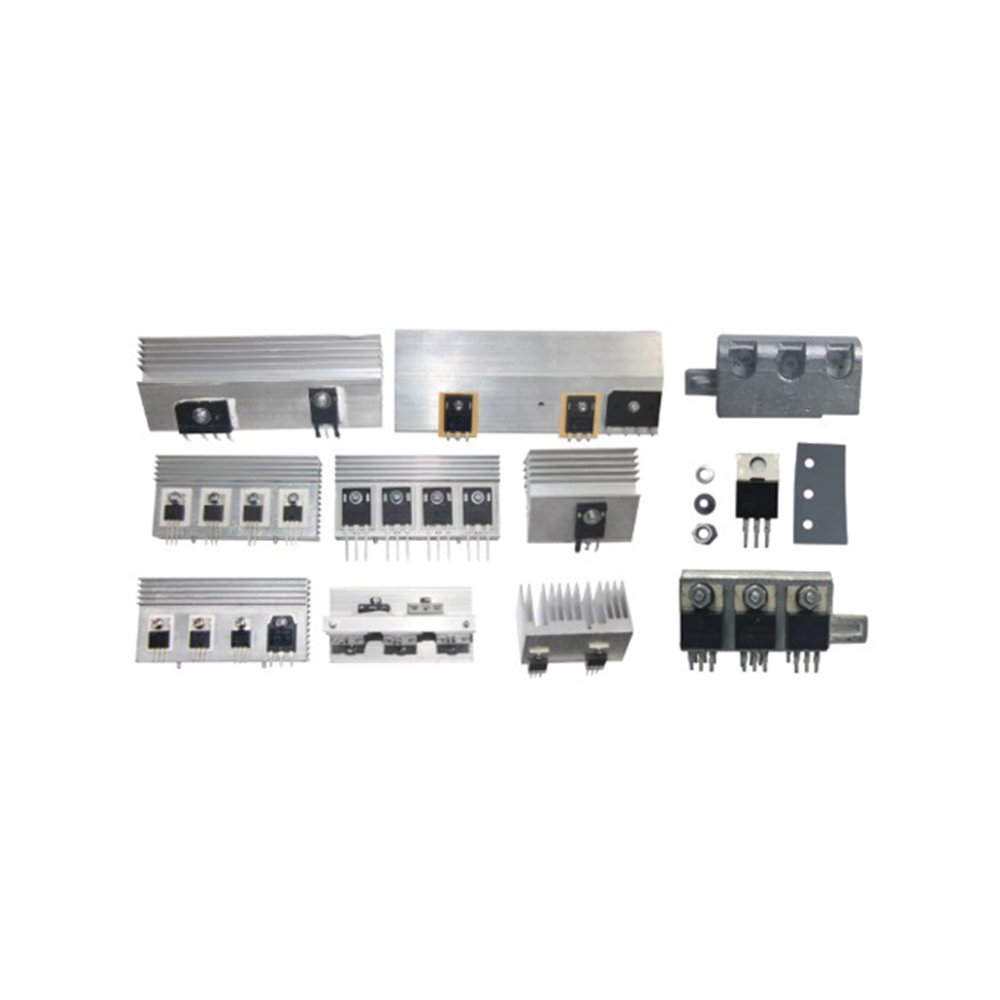

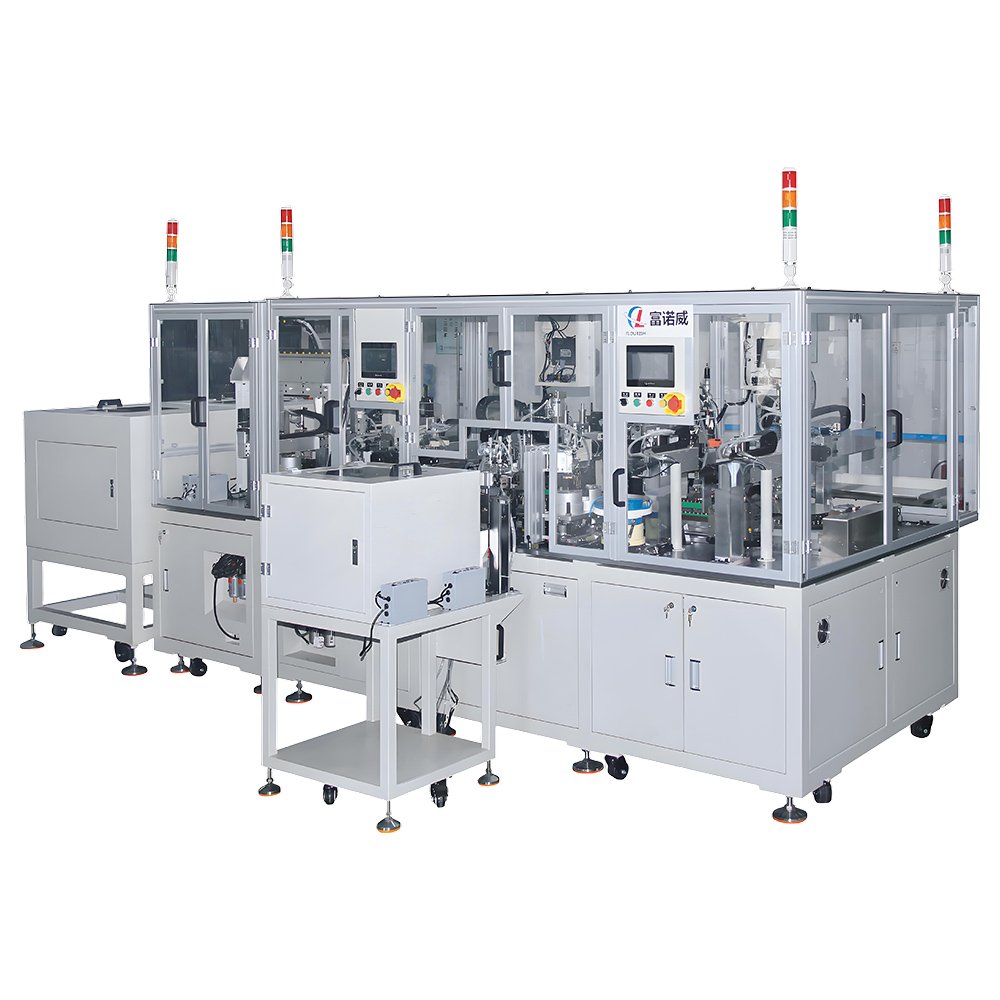

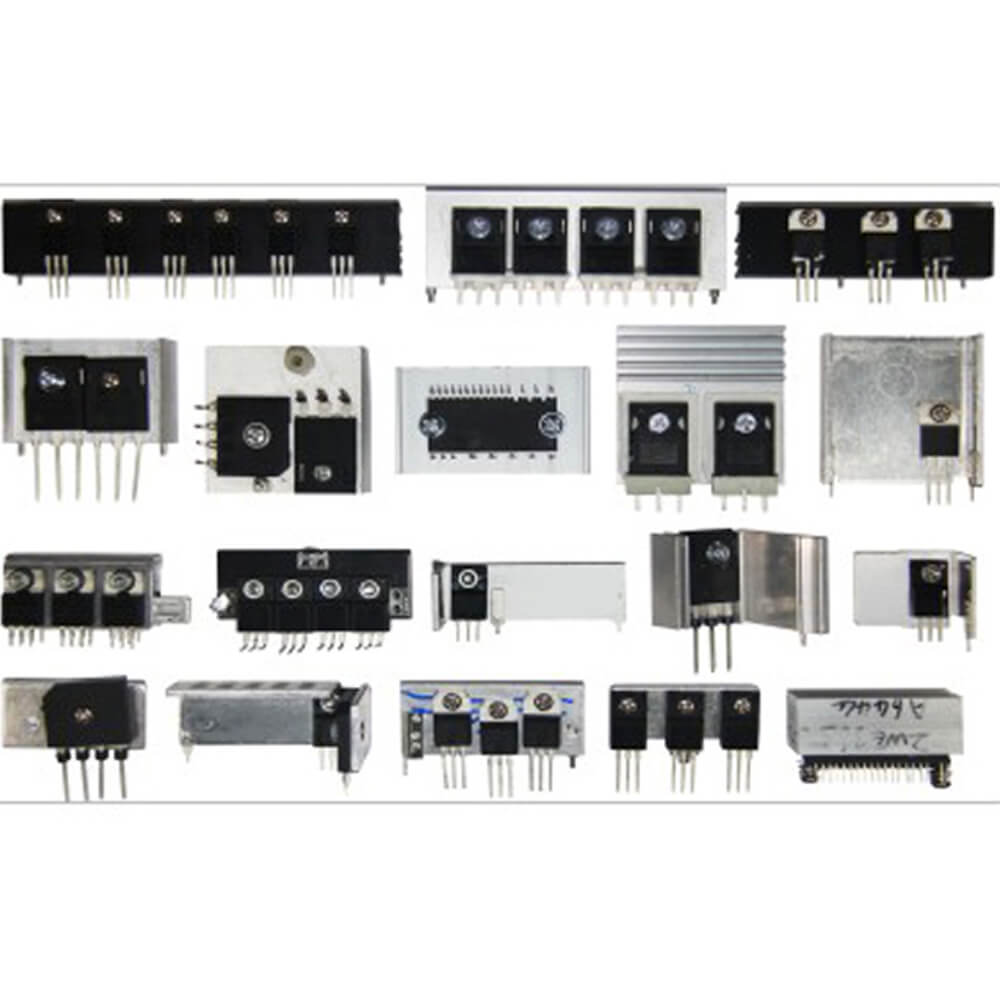

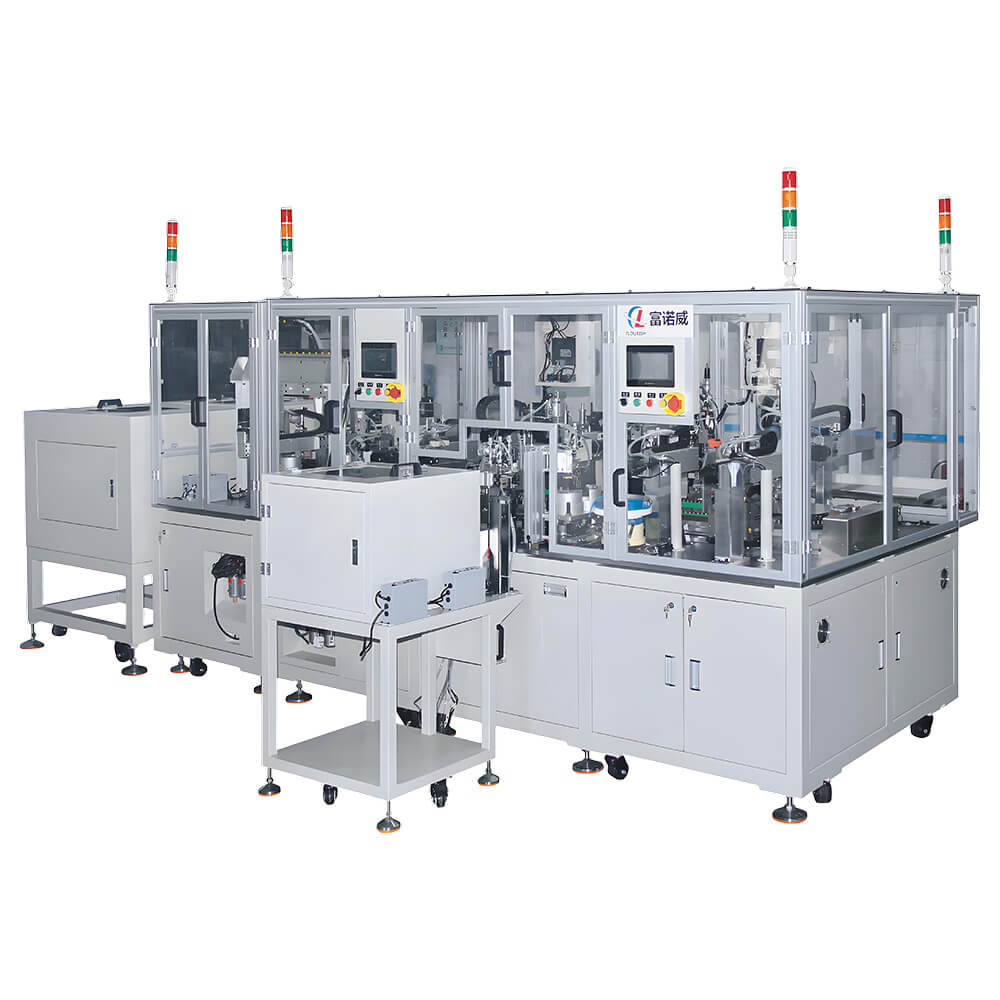

- This machine is a fully automated system that completes multiple processes on heatsinks, including automatic transistor lead trimming, thermal paste application, insulation sheet and pellet placement, transistor mounting, and screw fastening.
- The automated workflow includes: heatsink feeding → thermal paste application → insulation sheet loading → secondary paste application → transistor lead trimming and feeding → automatic insulation pellet placement → automatic screw fastening → product discharge, repeated continuously.

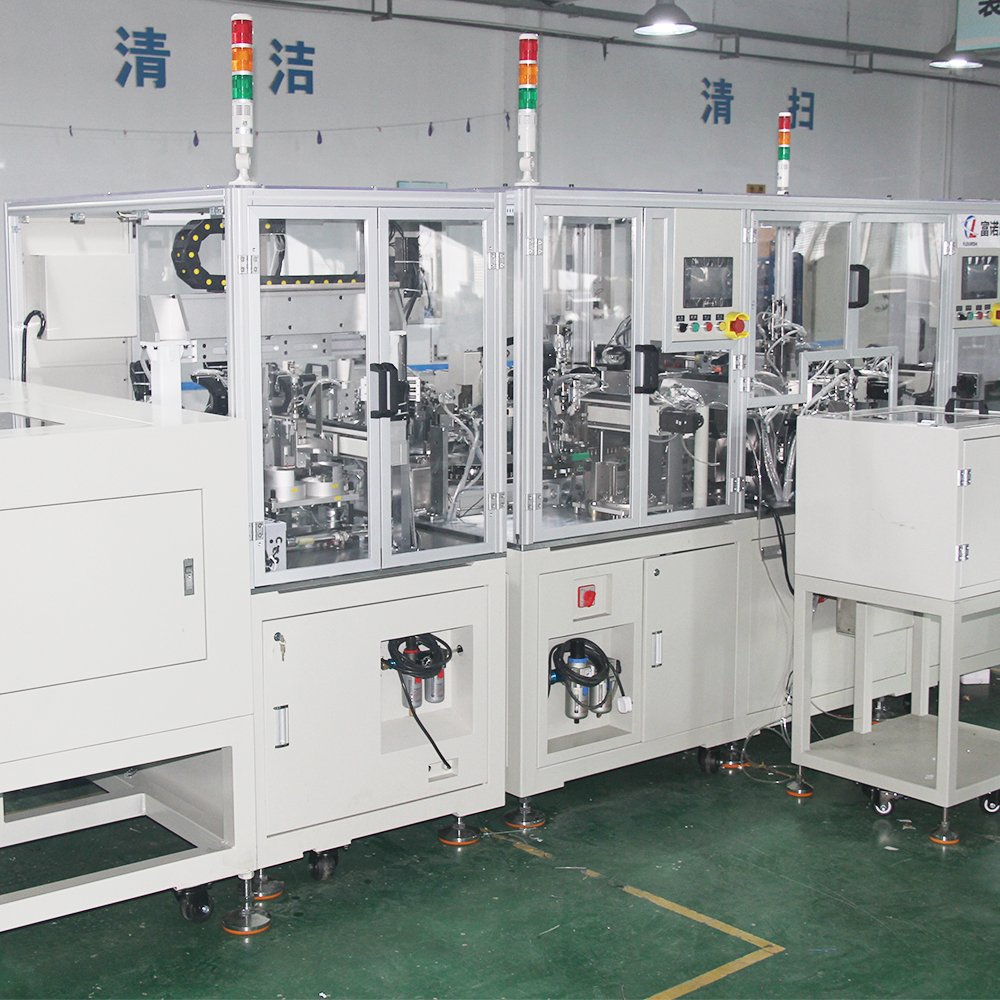

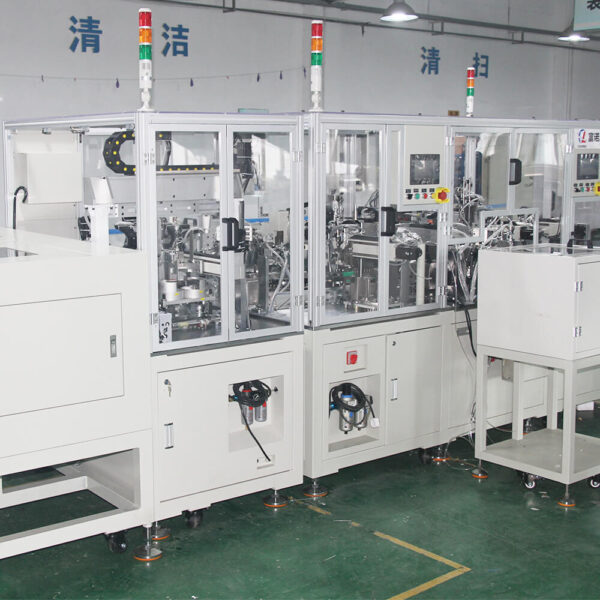

- The equipment features a modular inline structure capable of supporting complex assembly processes across numerous workstations. Depending on requirements, it can be configured with multi-level conveyor lines or rotary indexing tables.
- Each workstation is independently adjustable, reducing debugging complexity. Many stations are designed as complex assembly units, maximizing functional integration.
- This is a custom non-standard machine tailored to meet specific customer assembly processes and maximize production efficiency.
- Constructed with an aluminum profile frame, the machine is compact, space-saving, and highly efficient.
- It is controlled by Mitsubishi or Panasonic PLCs with a user-friendly touchscreen HMI for easy operation and learning.
- The machine uses imported SMC or Airtac cylinders, magnetic sensors, and solenoid valves, ensuring long service life.
- With excellent stability and high automation, this mature model is widely used in similar factories.
- It significantly reduces labor costs, replacing the work of approximately 10 operators with a single machine.
