Product Parameters:
- Power Supply: 110V/220V AC 60Hz/50Hz
- Dimensions: L1500W1000H1500mm
- Speed: 8000PCS/H
- Weight: 400kg
- Power: 1000W
- Air Pressure: 4-6kg/cm²
Product Description:

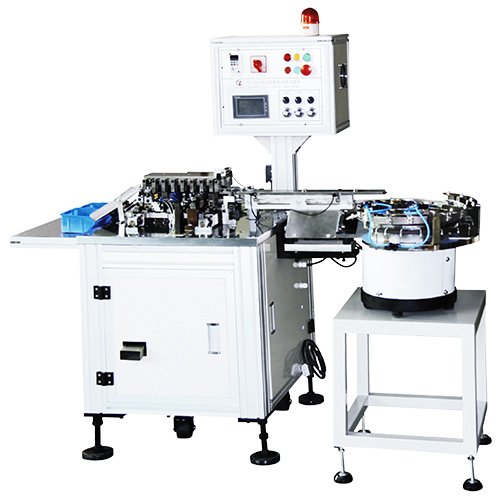

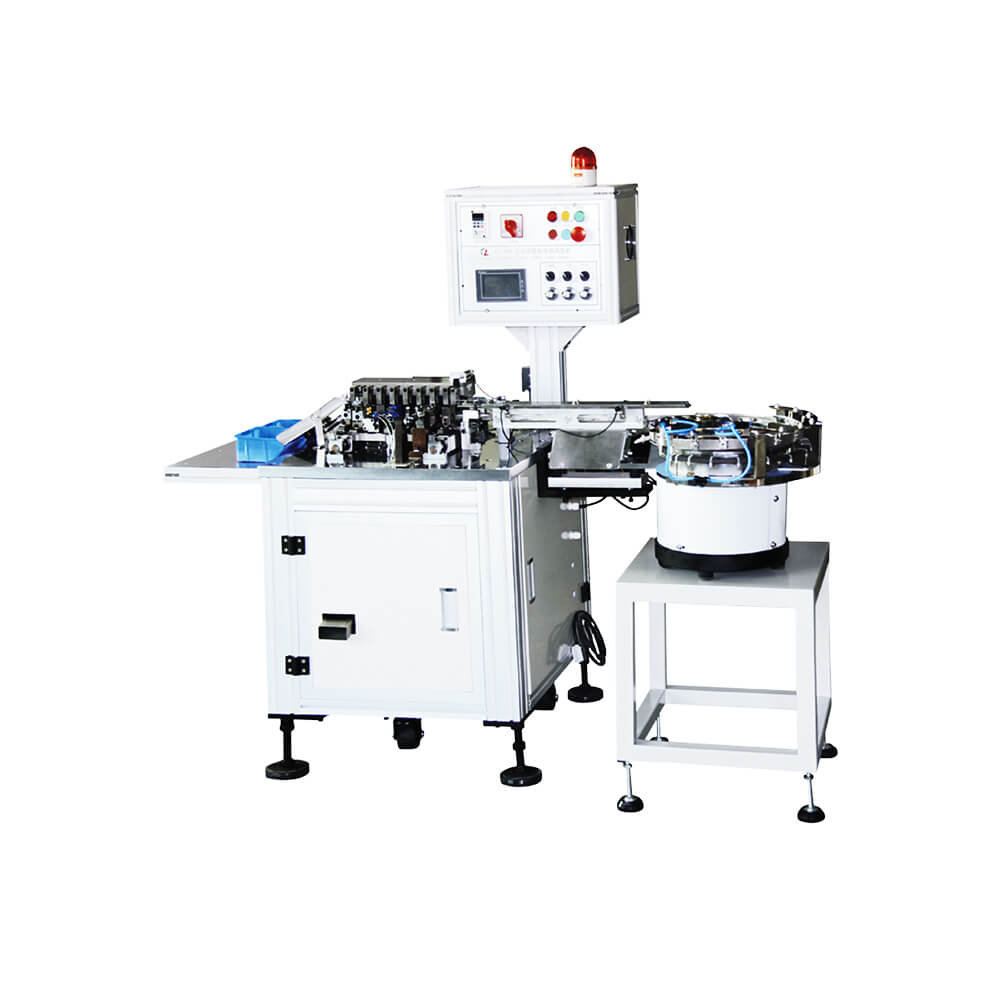

- The machine is equipped with a Japanese Mitsubishi PLC control system, featuring a human-machine interface touchscreen for easy and intuitive operation.
- Suitable for the forming of radial components such as LEDs, electrolytic capacitors, transistors, safety capacitors, metallized film capacitors, quartz crystals, and more.
- Imported cam drive mechanism ensures precise, stable, and durable performance with low noise. All components undergo special hardening treatment for extended service life.

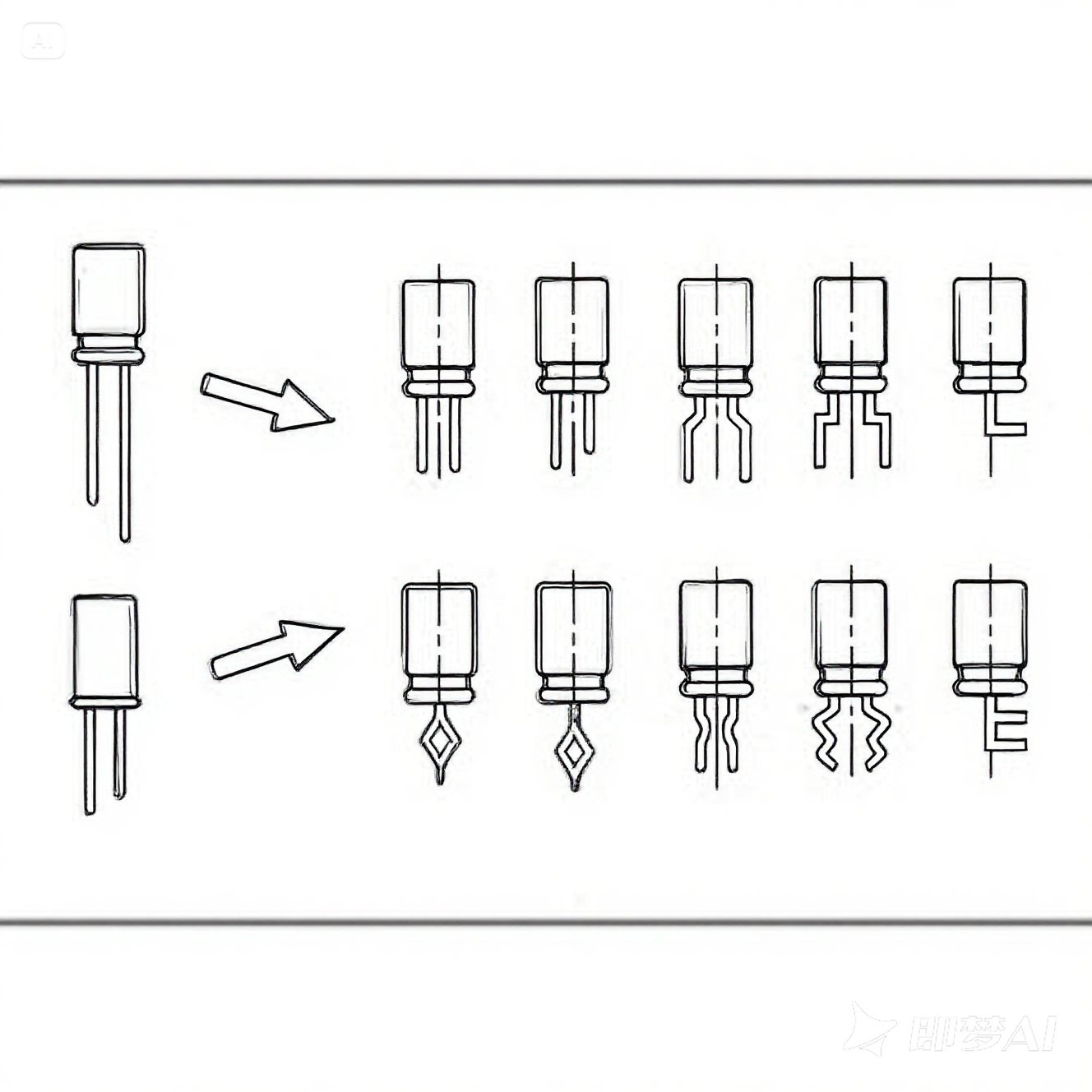

- Forming shapes include 90-degree bends, inward bends, outward bends, front and rear bends, K-bending, and both long and short leads. Customization is available based on customer requirements.
- The automatic vibrating bowl feeder supplies components, and the machine performs a series of processes: clamping, lead straightening, polarity detection, orientation, secondary testing, waste ejection, lead cutting, and forming, all in one cycle. Additional processes can be added as per special requirements.
- Features a modular die set, making mold replacement quick and convenient. Each die set can be individually adjusted, and the tooling is made from Japanese-imported steel for high durability.
- The elastic rack-style part holder ensures a secure and stable grip without damaging the component. Similar-sized parts can be processed without the need to replace the holder.
