Description
Product Parameters:
- Power: 220V 50Hz
- Dimensions: L1250W1000H1750mm
- Weight: 700kg
- Speed: Fastest 0.5s/point
Product Description:

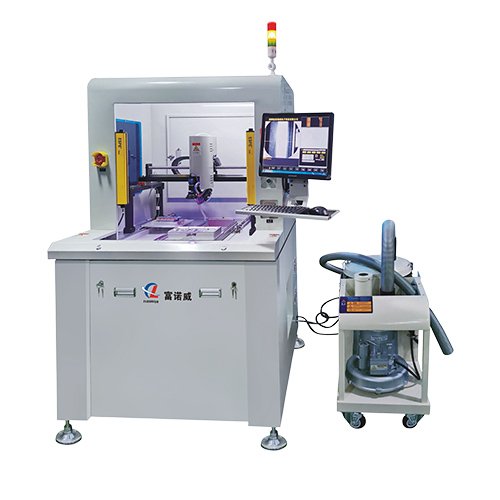

- The equipment features a human-machine interface (HMI) with a Windows-based operating system, allowing for easy editing of cutting paths via high-resolution CCD teaching. It supports single-step modifications and simulation, making programming simple and convenient. It can store up to 1000 sets of data, enabling quick retrieval and use.
- The linear motion axes are driven by AC servo systems, ensuring accurate cutting and precise positioning. This configuration optimizes cutting speed and enhances overall production efficiency.
- The machine uses a rotary pneumatic cutter, allowing for the best cutting orientation for each lead, ensuring precise cuts.
- In the inline version, the flow sequence is left-to-right or right-to-left, depending on the setup. The offline version employs dual-platform alternating operation to improve efficiency. The cut leads are removed via a vacuum system, preventing splashing or residual leads on the board.

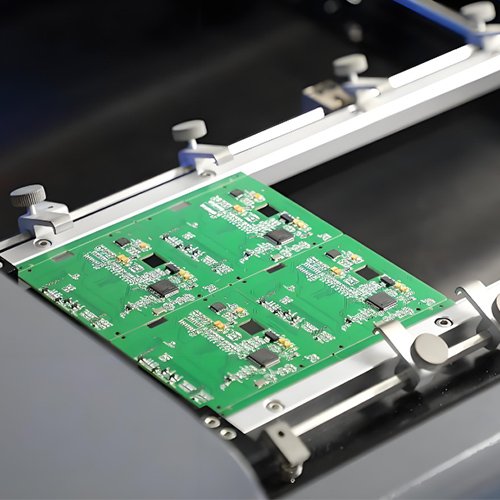

- The standard cutting area for each PCBA is 330mm x 360mm, with custom sizes available for boards exceeding this range.
- The machine is designed with a low-stress system, preventing any pulling or vibration during the cutting process, thereby protecting the quality of other PCBA components. For excessively tilted components, manual adjustment is required before cutting.
- This machine has been widely applied in multiple customer factories, with its technology fully matured and reliable.
