Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L1600 x W920 x H1580 mm
- Weight: 550 kg
- Speed: 1500 PCS/H
- Air Pressure: 4-6 kg/cm²
Product Description:

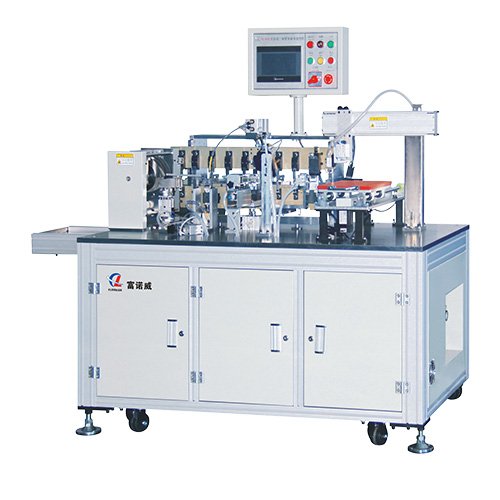

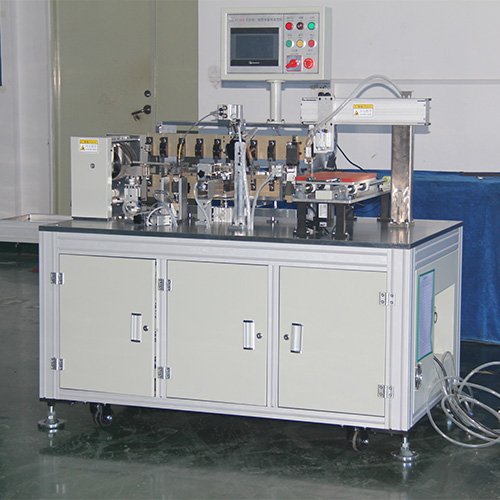

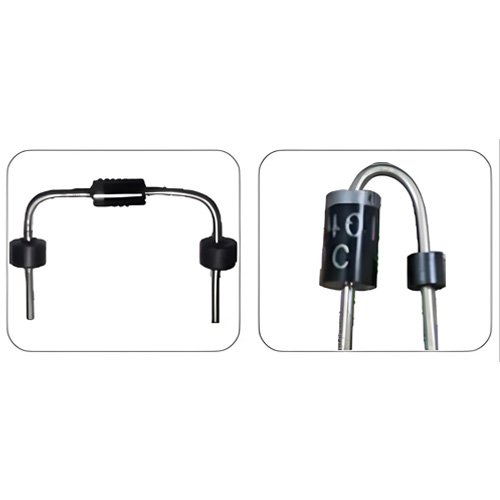

- The FL-820 Fully Automatic Diode with Magnetic Bead Forming Machine is a specialized machine for processing banded or bulk diodes, where magnetic beads are inserted onto either one or both ends of the diode body, followed by fully automatic forming and lead cutting.
- The equipment operates fully automatically, with the workflow as follows:
Banded material feeding and cutting
Diode gripping
Lead forming
Magnetic bead insertion
Lead bending and cutting
Glue dispensing
Unloading
The process repeats in a continuous cycle.
- Magnetic beads are fed automatically via a vibration bowl system, and glue is dispensed automatically for consistent application.
- Interchangeable forming molds make the machine adaptable to various diode sizes, and the mold assembly is easy to disassemble and adjust.
- The machine adopts a multi-station design, ensuring sequential operations that are both flexible and efficient.
- Built with an aluminum alloy frame, the machine is compact and space-saving, making it highly efficient with speeds up to 1200 PCS/H or more.
- The system is controlled by a Mitsubishi PLC, featuring an easy-to-use touchscreen HMI, simplifying operation and reducing learning time.
- The machine is equipped with imported SMC or Airtac cylinders, magnetic switches, and solenoid valves, offering long-lasting performance.
- With excellent stability and high automation, the FL-820 is widely used in power supply production factories, ensuring consistent high-quality output.
- The FL-820 helps reduce labor costs, as one machine can replace 2 to 5 workers, improving efficiency and reducing operational costs.
