Product Parameters:

• Power Supply: 220V 50Hz
• Dimensions: L1555 x W1050 x H1650 mm
• Weight: Approximately 800 kg per machine
• Speed: 1500-1800 pcs/h

Product Description:

• Capacitors, LEDs, and similar components are automatically fed using a vibration bowl system, with linear feeding to the sleeve forming turntable mechanism.
• The machine automatically identifies the polarity of electrolytic capacitors, LEDs, and other polarized components, sorting them in a fixed direction to meet the polarity requirements during the forming process.
• A high-precision sleeve insertion mechanism ensures that heat shrink tubing or PTFE tubing is accurately inserted onto the leads of capacitors/LEDs, with adjustable sleeve lengths.
• After the sleeve is applied, the capacitors/LEDs are formed and lead-cut in separate stations. The forming and cutting sizes are adjustable, and mold changes can be made to alter the forming shape.
• The processed capacitors/LEDs are automatically unloaded, with automatic counting included.
• The machine is controlled by a Mitsubishi PLC and a touchscreen HMI, using a cam divider for stable operation and high precision.
• All actions are fully automated, requiring no manual operation except for loading the capacitors/LEDs into the vibration bowl and inserting the roll tubing.
• All actions occur sequentially across independent workstations, making adjustments and mold changes easy.
• The machine is easy to operate and maintain, with user-friendly design.

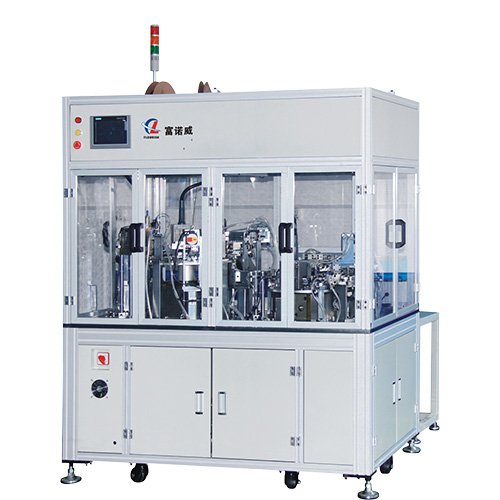

• The FL-819 Fully Automatic Capacitor and LED Heat Shrink Sleeve Forming Machine saves labor costs, as one machine can replace 2-6 workers depending on the workflow setup.
