Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L1780 x W1460 x H1500 mm
- Speed: 1200-1800 pcs/h
- Weight: 550 kg
- Air Pressure: 4-6 kg/cm²
Product Description:

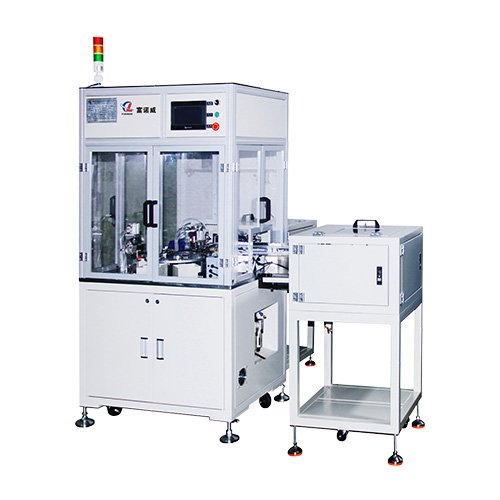

- The FL-811 Fully Automatic LED Glue Sleeve Forming Machine is a fully automatic machine designed for bulk LED components. It first cuts the leads to the required length, then inserts the glue holder onto one end of the leads, followed by automatic unloading of finished parts.
- The machine operates fully automatically, with the workflow as follows:
LED feeding
LED picking and lead cutting
Lead forming
Glue holder insertion
Unloading
The process repeats continuously.
- Bulk LEDs are automatically arranged and fed using a vibration bowl, with the machine handling the automatic transfer and lead cutting.
- The system features a multi-station design, where each action is performed sequentially, making the process flexible and efficient.
- Built with an aluminum alloy frame, the FL-811 offers a compact structure, saving space while maintaining high efficiency with speeds of 1200 PCS/H or more.
- The machine is controlled by a Mitsubishi PLC and features a touchscreen HMI, making it easy to operate and simple to learn.
- It uses imported SMC or Airtac cylinders, magnetic switches, and solenoid valves, ensuring long service life and high reliability.
- With excellent stability and high automation, the FL-811 is widely used in power supply production factories, ensuring consistent quality and high throughput.
- The FL-811 helps reduce labor costs, as one machine can replace 2-5 operators, making it an ideal choice for cost-effective manufacturing.
