Description
Product Parameters:
- Power: 110V/220V AC 60Hz/50Hz
- Dimensions: L900W600H740mm
- Weight: 115kg
- Motor: Main Shaft 3/4HP
Product Description:
- Claw-Type Spring Clip Fixtures: The machine uses automatic pushing with claw-type spring clip fixtures, ensuring high stability. It can be easily integrated with production lines and automatic soldering ovens.
- Imported SKF Main Shaft: The main shaft is from SKF, offering low noise, 4500 rpm/min speed, high precision, and high production efficiency.
- Adjustable Feeding Speed: The rail feeding speed can be adjusted based on the thickness of the pins, which helps to extend the cutting tool life.
- Claw Plate Feeding Mechanism: The machine uses a claw plate rail system that firmly clamps the PCB and pushes it from back to front, ensuring strong and balanced pushing.
- Needle Pins and Bakelite Press Plates: Equipped with needle pins and Bakelite press plates, it effectively prevents PCB deformation after soldering.
- Safety Features: The machine comes with a micro-switch and safety door, ensuring high safety during operation.

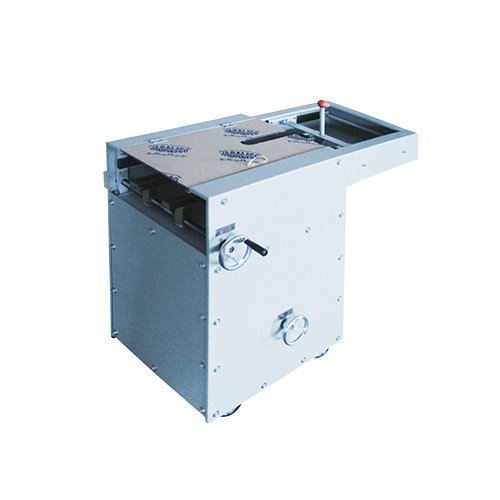

- Manual Cutting Machine: The machine is based on the FL-201 type manual PCB lead cutting machine, shown in the diagram above.
