Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L1300 x W700 x H1400 mm
- Weight: 350 kg
- Speed: 2500-3500 PCS/H
- Power: 1000W
- Air Pressure: 4-6 kg/㎡
Product Description:

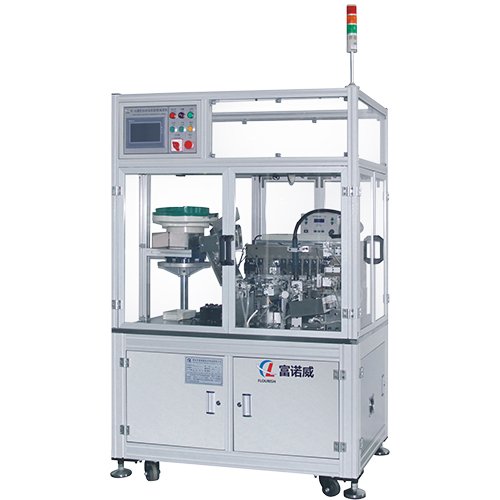

- The FL-617 Fully Automatic Fuse Tube Heat Shrink Sleeve Forming Machine is a specialized machine for processing banded or bulk fuse tubes. It automatically inserts heat shrink tubing onto the fuse tube body and PTFE tubing onto the leads, or can apply only one type of tubing, depending on production requirements. It then proceeds to fully automatic forming and lead cutting, ensuring precision and consistency.
- This machine can also be used for bulk fuse tubes, with a vibration bowl feeding system that enables fully automated material feeding, streamlining the entire tube processing operation.
The equipment operates fully automatically, with the workflow as follows:
1.📦 Banded material feeding and cutting (or bulk component feeding)
2. 🤏 Fuse tube gripping
3. 🔄 Lead forming
4. ➡️ Inserting sleeve onto fuse tube
5. 🔥 Heat shrinking the sleeve
6. 🧪 Inserting PTFE tubing onto the leads
7. 🔧 Component forming
8. ✂️ Lead cutting and material unloading
- Banded material is fed through a gear mechanism that removes the banding, while bulk material is automatically sorted and fed through the vibration bowl system.
- The forming mold is replaceable and modularly assembled, making it easy to disassemble and adjust, ensuring quick and simple setup changes.
- The machine utilizes a mechanical drive structure that enhances stability and fault-free operation. The imported cam drive system ensures precise transmission, with a cam lifespan of up to ten years.
- Aluminum alloy frame provides a compact, space-saving design, increasing efficiency. The system can process up to 1500 pcs/H, maximizing productivity.
- The equipment is controlled by a Panasonic PLC, with an intuitive human-machine interface (HMI) and touch screen operation for ease of use.
- Imported SMC or Airtac cylinders, magnetic switches, and solenoid valves ensure long-lasting performance and reliability.
- With excellent stability and high automation, the machine is widely used in power supply production factories. It can replace 3 to 8 workers, improving efficiency and reducing labor costs.
