Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L1300 x W700 x H1400 mm
- Speed: 1500 PCS/H
- Weight: 300 kg
- Power: 200W
- Air Pressure: 4-6 kg/㎡
Product Description:

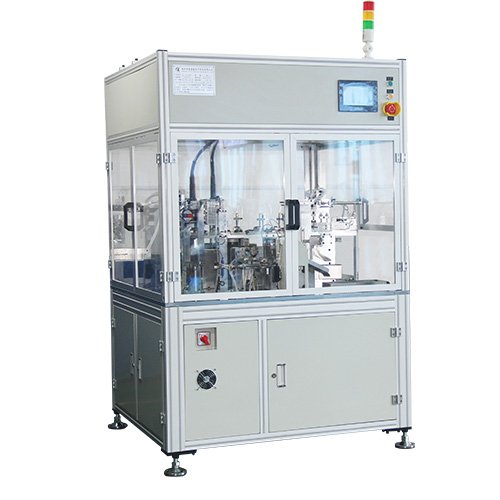

- The FL-618 Horizontal Fuse Tube Heat Shrink Sleeve Forming Machine is a fully automated machine designed specifically for inserting sleeves onto axial components such as inductors, resistors, fuses, diodes, and similar parts.
- The machine also features a vibration bowl system for fully automated material feeding, enabling the automated processing of bulk components like resistors and fuses.

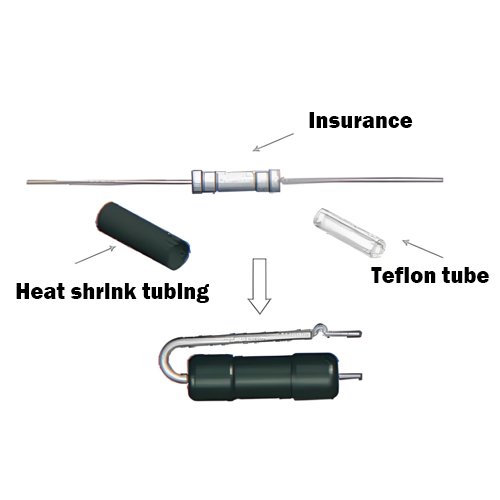

- By using banded components and roll heat shrink tubing or PTFE tubing, the machine performs cutting, sleeve insertion, and forming functions. The sleeve is applied onto the component leads, with the option to customize it to fit the body. It also supports horizontal forming and can perform K-cutting if required.
- All actions are completed automatically, and the machine can accommodate different shapes by simply replacing the forming molds. The sleeve length can be easily adjusted to meet production needs.
- The equipment is controlled by a Mitsubishi PLC, with a touchscreen human-machine interface (HMI) for easy operation and monitoring.
- The machine utilizes a divider mechanism to allocate different tasks to separate workstations, ensuring low defect rates and high precision.
- The high stability and automation level of the machine make it ideal for use in power supply production factories, where it can replace 3 to 6 workers, improving productivity and reducing labor costs.
