Description
Product Parameters:
- Power Supply: 110V/220V AC 60HZ/50HZ
- Dimensions: L775 * W670 * H700 MM
- Speed: 3000 PCS/H
- Weight: 110 KG
- Power Consumption: 200W
- Air Pressure: 0.6-0.8 MPa
- Screw Fastening Range: Customizable according to customer requirements
- Positioning Accuracy: 0.02 mm
- Fastening Efficiency: < 1.2S
- Motion Type: Precision stepper drive
- Screw Feeding Method: Suction or blow feed
- Control System: PLC + Human-Machine Interface Touch Screen
Product Description:

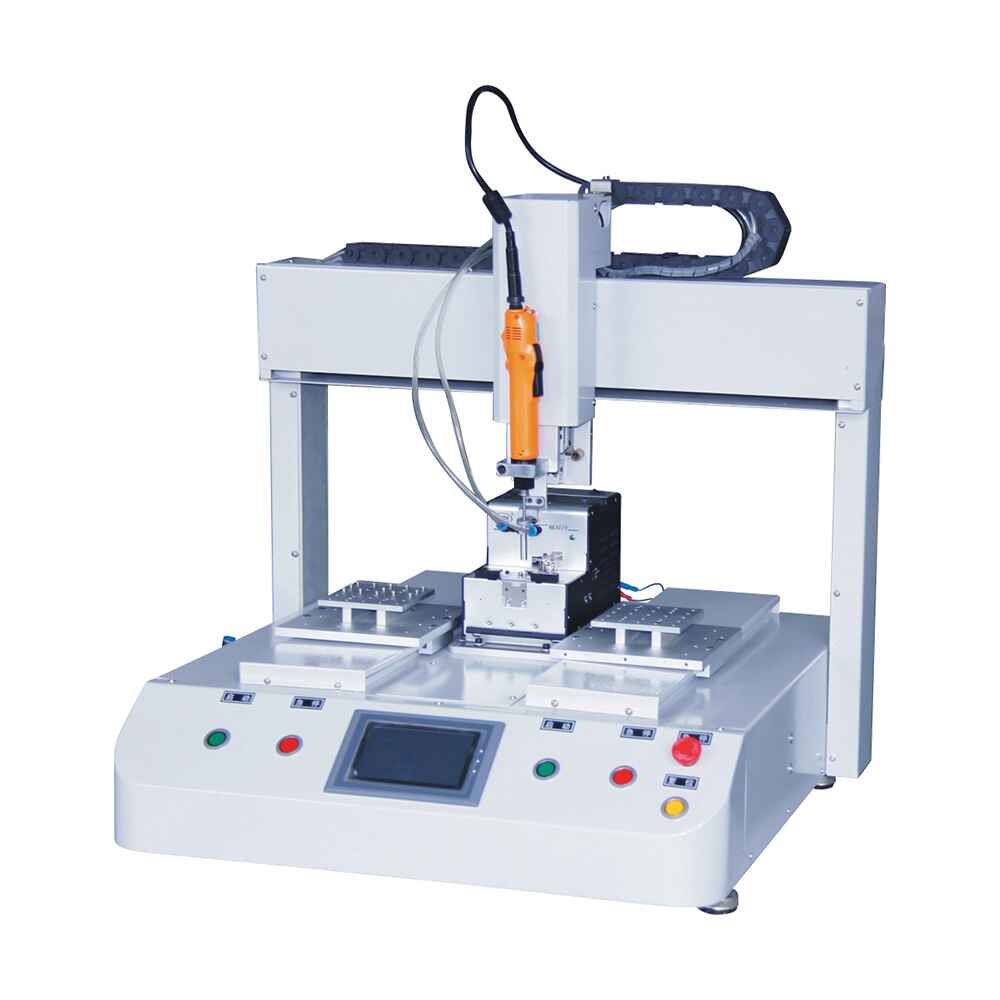

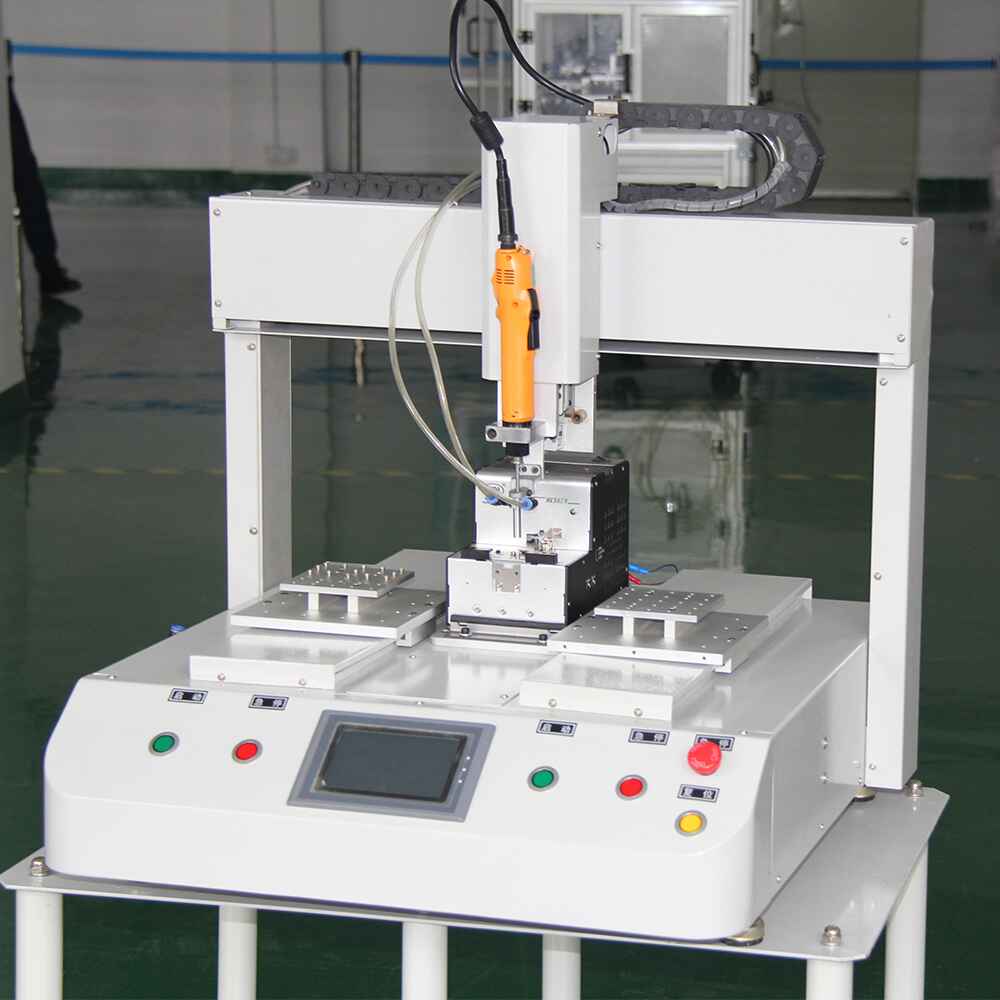

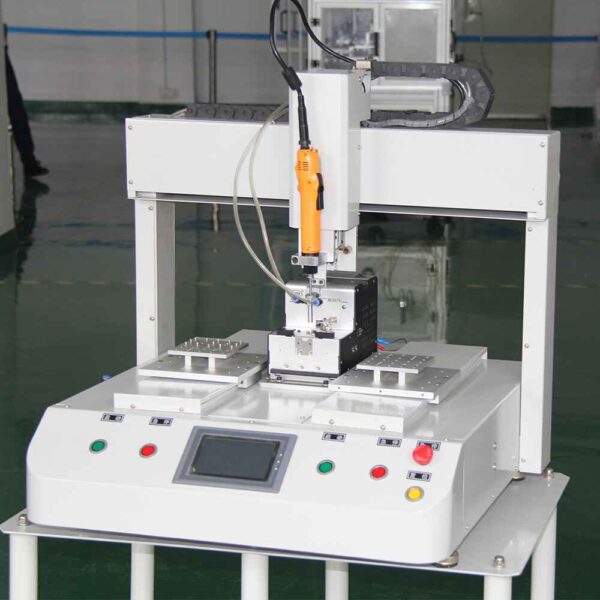

- This equipment completes both screw feeding and screw fastening fully automatically. The screw feeder can be configured with one or two units depending on the work platform, and the work platform can also be configured as a single or dual platform based on the specific needs.
- The screw feeding method can be selected as suction or blow feed based on the screw characteristics and the product being fastened.
- The equipment features intelligent detection functions capable of detecting issues such as missing screws, cross-threading, and stripped threads.
- The equipment has a wide fastening range, with different screw specifications accommodated by changing the feeding system. The range extends from M1 to M6, and product changeover can be easily achieved using universal or dedicated fixtures for secure fixation.
- The equipment is simple and practical, occupying minimal space and can be placed on a workbench or integrated into a production line.
- Optional additions include robotic arms and conveyors, which can automatically transfer finished products onto the assembly line, thus reducing manual labor.
- This method is highly effective for factories with many machine types or irregular products, where full automation of screw fastening might be challenging. It is one of the most efficient ways to eliminate manual labor.
- The dual Y-axis design improves work efficiency by optimizing the entry and exit processes.
- Dual-head and multi-head configurations are also available, with up to 4 heads, maximizing efficiency to the greatest extent.
- The equipment is easy to operate, allowing users to simply input coordinates or call up a program for automatic operation.
